DimensionThreadBoreChamferRadiusSurfaceGD&T

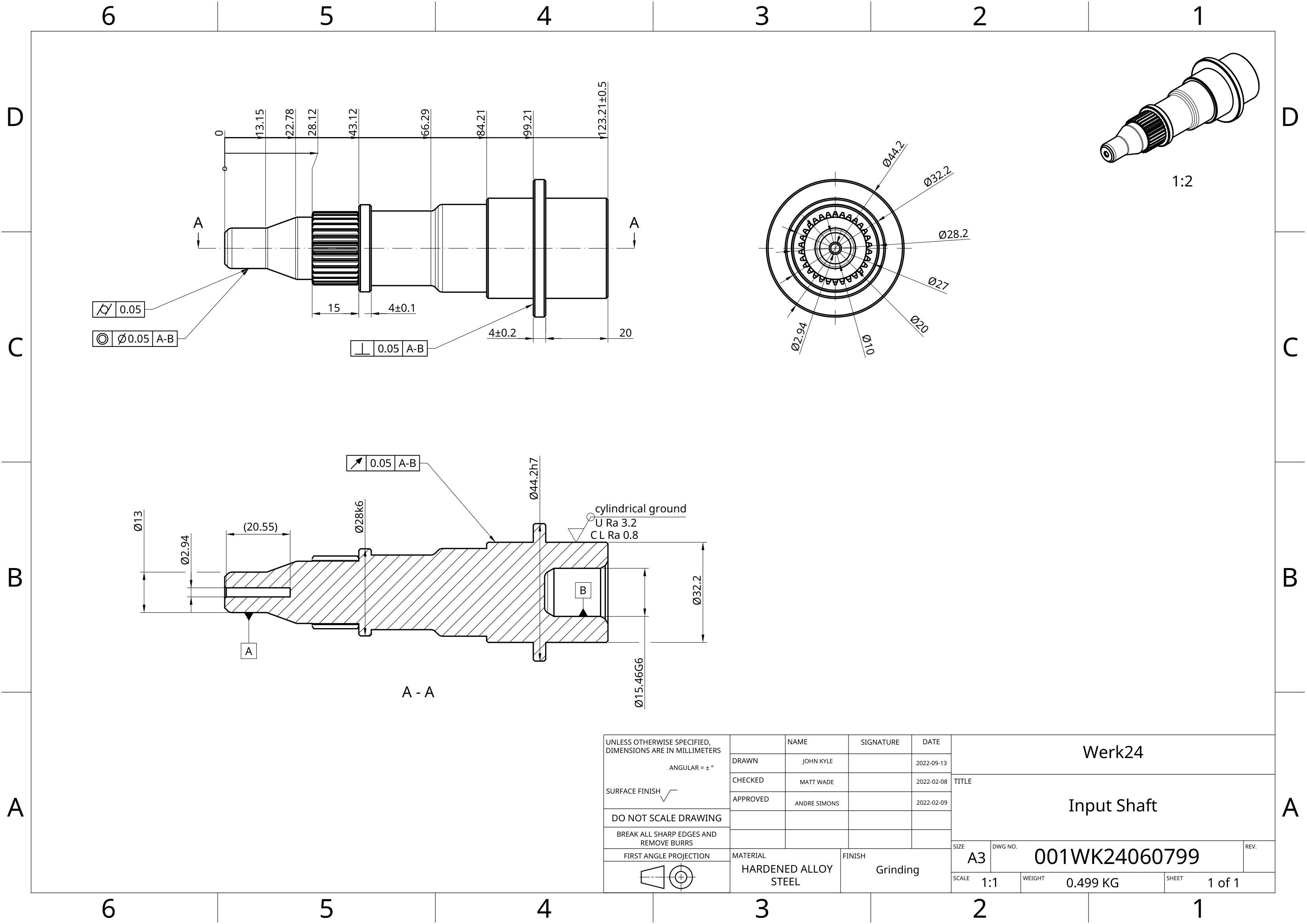

Input Shaft
001 WK24060799
Title BlockMetadata
DesignationInput Shaft#1
Drawing Number001 WK24060799#0
Material & WeightMetadata
MaterialHARDENED ALLOY STEEL#3
StandardFERROUS_ALLOY/STEEL#3
Weight0.499 kg#4
Unit · ProjectionMetric · First Angle
General SpecificationsMetadata
General Roughness√#2
Measured Features31Features
7Ø2.94Diameter
820.55Linear dimension
9Ø28 k6 (+0.015/+0.002)Diameter · ISO fit
10Ø13Diameter
11Ø44.2 h7 (0/-0.025)Diameter · ISO fit
12Ø32.2Diameter
13Ø15.46 G6 (+0.017/+0.006)Diameter · ISO fit
14Ø10Diameter
15Ø27Diameter
16Ø32.2Diameter
17Ø20Diameter
18Ø44.2Diameter
19Ø28.2Diameter
20Ø2.94Diameter
2115Linear dimension
224 ±0.1Linear dimension
234 ±0.2Linear dimension
2420Linear dimension
2543.12Linear dimension
2622.78Linear dimension
2713.15Linear dimension
2828.12Linear dimension
2984.21Linear dimension
3066.29Linear dimension
31123.21 ±0.5Linear dimension
3299.21Linear dimension
33▽√URa 3.2Surface finish
34[↗|0.05|A-B]GD&T · Circular runout
35[⟂|0.05|A-B]GD&T · Perpendicularity
36[◎|Ø0.05|A-B]GD&T · Concentricity
37[⌭|0.05]GD&T · Cylindricity
Manufacturing InsightsInsights
No manufacturing insights for this drawing
Bill of MaterialMetadata
No Bill of Material
